IP Pool

Available as of v1.2.0

Harvester IP Pool is a built-in IP address management (IPAM) solution exclusively available to Harvester load balancers (LBs).

Features​

  • Multiple IP ranges: Each IP pool can contain multiple IP ranges or CIDRs.
  • Allocation history: The IP pool keeps track of the allocation history of every IP address and prioritizes assigning previously allocated addresses by load balancer name.
    status:
      allocatedHistory:
        192.168.178.8: default/rke2-default-lb-pool-2fab9ac0
  • Scope: IP pools can be confined to a particular network, project, namespace, or guest cluster.

How to create​

To create a new IP pool:

  1. Go to the Networks > IP Pools page and select Create.
  2. Specify the Name of the IP pool.
  3. Go to the Range tab to specify the IP ranges for the IP pool. You can add multiple IP ranges.

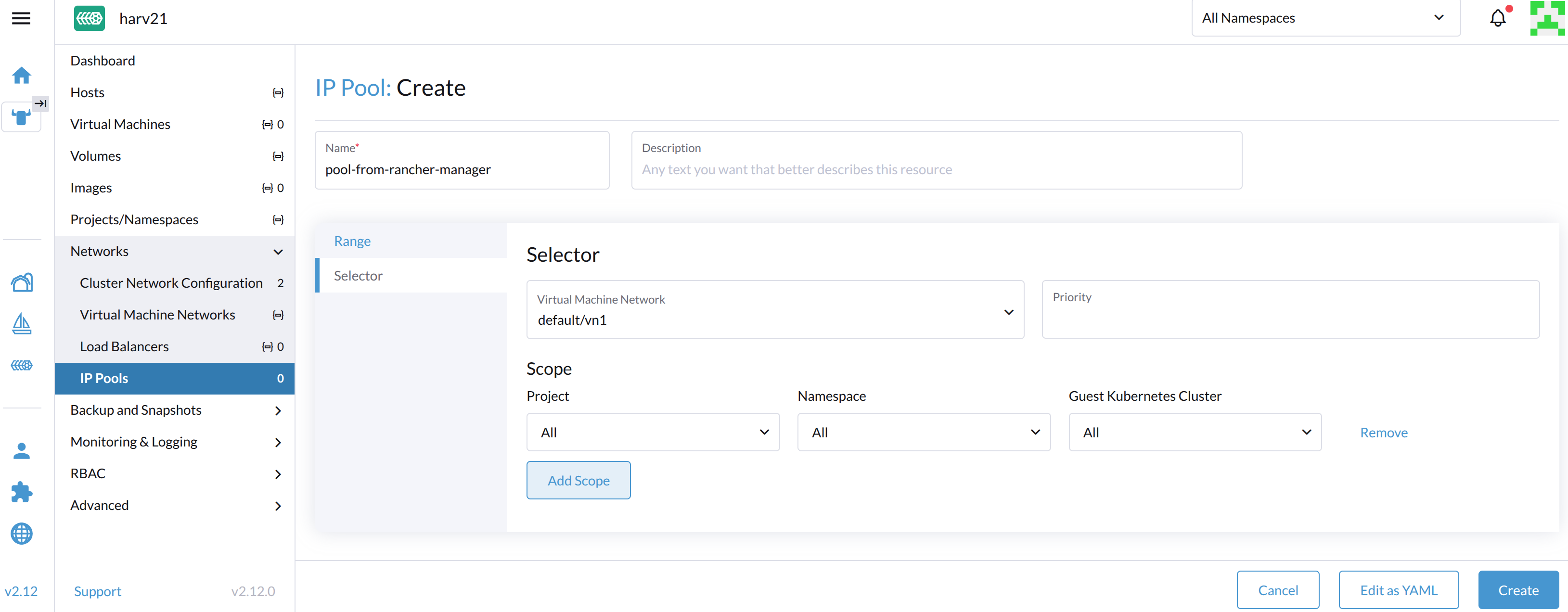

  4. Go to the Selector tab to specify the Scope and Priority of the IP pool.

Selection policy​

Each IP pool will have a specific range, and you can specify the corresponding requirements in the LB annotations. IP pools that meet the specified requirements will automatically assign IP addresses to LBs.

  • LBs utilize the following annotations to express requirements (all annotations are optional):
    • loadbalancer.harvesterhci.io/network specifies the VM network the guest cluster nodes use.
    • loadbalancer.harvesterhci.io/project and loadbalancer.harvesterhci.io/namespace identify the project and namespace of the VMs that comprise the guest cluster.
    • loadbalancer.harvesterhci.io/cluster denotes the name of the guest cluster.
  • The IP pool has a selector, including network and scope, to match the requirements of the LB.
    • Network is a hard condition. The optional IP pool must match the value of the LB annotation loadbalancer.harvesterhci.io/network.
    • Every IP pool, except the global IP pool, has a unique scope different from others if its priority is 0. The project, namespace, or cluster name of LBs should be in the scope of the IP pool if they want to get an IP from this pool.
  • spec.selector.priority specifies the priority of the IP Pool. The larger the number, the higher the priority. If the priority is not 0, the value should differ. The priority helps you to migrate the old IP pool to the new one.
  • If the IP Pool has a scope that matches all projects, namespaces, and guest clusters, it's called a global IP pool, and only one global IP pool is allowed. If there is no IP pool matching the requirements of the LB, the IPAM will allocate an IP address from the global IP pool if it exists.

Examples​

  • Example 1: You wish to set up an IP pool within the range 192.168.100.0/24 for the default namespace. In this scenario, all load balancers within the default namespace will receive an IP address from this designated IP pool:

    apiVersion: networking.harvesterhci.io/v1beta1
    kind: IPPool
    metadata:
      name: default-ip-pool
    spec:
      ranges:
      - subnet: 192.168.100.0/24
      selector:
        scope:
          namespace: default

  • Example 2: You have a guest cluster rke2 deployed within the network default/vlan1, and its project/namespace name is product/default. If you want to configure an exclusive IP pool range 192.168.10.10-192.168.10.20 for it. Refer to the following YAML config:

    apiVersion: networking.harvesterhci.io/v1beta1
    kind: IPPool
    metadata:
      name: rke2-ip-pool
    spec:
      ranges:
      - subnet: 192.168.10.0/24
        rangeStart: 192.168.10.10
        rangeEnd: 192.168.10.20
      selector:
        network: default/vlan1
        scope:
        - project: product
          namespace: default
          guestCluster: rke2

  • Example 3: If you have specified the IP pool default-ip-pool for the default namespace, you want to migrate the IP pool default-ip-pool to a different IP pool default-ip-pool-2 with range 192.168.200.0/24. It's not allowed to specify over one IP pool for the same scope, but you can give the IP pool default-ip-pool-2 a higher priority than default-ip-pool. Refer to the following YAML config:

  • apiVersion: networking.harvesterhci.io/v1beta1
    kind: IPPool
    metadata:
      name: default-ip-pool-2
    spec:
      ranges:
      - subnet: 192.168.200.0/24
      selector:
        priority: 1  # The priority is higher than default-ip-pool
        scope:
          namespace: default

  • Example 4: You want to configure a global IP pool with a CIDR range of 192.168.20.0/24:

    apiVersion: networking.harvesterhci.io/v1beta1
    kind: IPPool
    metadata:
      name: global-ip-pool
    spec:
      ranges:
      - subnet: 192.168.20.0/24
      selector:
        scope:
        - project: "*"
          namespace: "*"
          guestCluster: "*"

Allocation policy​

  • The IP pool prioritizes the allocation of previously assigned IP addresses based on their allocation history.
  • IP addresses are assigned in ascending order.
note

Starting with Harvester v1.2.0, the vip-pools setting is deprecated. Following the upgrade, this setting will be automatically migrated to the Harvester IP pools.
