VPC NAT Gateway
note
All features that use Kube-OVN are considered experimental. For more information about experimental features, see Feature Labels.
NAT enables external connectivity or inbound access: SNAT (Source NAT) allows VMs (or pods) inside a private overlay network / VPC to access external networks (e.g. internet) by translating their internal source IP to a public (or external-network-shared) IP. DNAT (Destination NAT) allows external hosts to reach internal VMs/pods by mapping a public IP / port to an internal private IP / port (e.g. to SSH into an internal VM).
Flexible networking for VPCs / overlay networks: Using NAT (SNAT / DNAT) with Kube-OVN means you can build isolated private subnets / VPCs and still allow controlled egress (outbound) or ingress (inbound) traffic. This is especially relevant for VM workloads managed by Harvester, where VMs may need internet access or to expose services externally.
Kube-OVN supports NAT via Kubernetes custom resources (CRDs), not just IP-tables directly. For example, resources like OvnEip, OvnSnatRule, OvnDnatRule (or their iptables-based equivalents) are used to define NAT behavior declaratively. In the context of Harvester, the VM orchestration (compute, storage, VM lifecycle,L2 VLAN based networking, underlay networking) is handled by Harvester; overlay networking — including routing, NAT, VPC/subnets — is handled by Kube-OVN. This separation allows for more scalable, flexible and clean networking.
KubeOVN as Secondary CNI
In Harvester v1.6.x and v1.7.x, Outbound and Inbound connectivity for VMs works only when attached to subnets created on default VPC (ovn-cluster) with natOutgoing as true.
With the introduction of kubeovn as secondary CNI in Harvester v1.8.0, Outbound and Inbound connectivity for VMs works on subnets created on any custom VPCs using VPC NAT Gateway functionality.
Example Configuration and Working
Create a network attachment definition (tenant or internal network)
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
labels:
network.harvesterhci.io/ready: "true"
network.harvesterhci.io/type: OverlayNetwork
name: vswitchinternal
namespace: default
spec:
config: '{"cniVersion":"0.3.1","name":"vswitchinternal","type":"kube-ovn","server_socket":
"/run/openvswitch/kube-ovn-daemon.sock", "provider": "vswitchinternal.default.ovn"}'
Create a network attachment definition (external network)
kubectl get net-attach-def vswitchexternal1 -o yaml
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
labels:
network.harvesterhci.io/ready: "true"
network.harvesterhci.io/type: OverlayNetwork
name: vswitchexternal
namespace: kube-system
spec:
config: '{"cniVersion":"0.3.1","name":"vswitchexternal","master": "eno50","type":"kube-ovn","server_socket":
"/run/openvswitch/kube-ovn-daemon.sock", "provider": "vswitchexternal.kube-system.ovn"}'
Create a custom vpc
apiVersion: kubeovn.io/v1
kind: Vpc
metadata:
name: custom-vpc
spec: {}
create a subnet using the internal or tenant network in custom-vpc
apiVersion: kubeovn.io/v1
kind: Subnet
metadata:
name: subnetinternal
spec:
cidrBlock: 172.20.10.0/24
default: false
enableLb: true
excludeIps:
- 172.20.10.1
gateway: 172.20.10.1
gatewayNode: ""
natOutgoing: true
private: false
protocol: IPv4
provider: vswitchinternal.default.ovn
vpc: custom-vpc
Create a subnet using the external network
apiVersion: kubeovn.io/v1
kind: Subnet
metadata:
name: subnetexternal
spec:
cidrBlock: 10.115.48.0/21
default: false
enableLb: true
excludeIps:
- 10.115.55.254
gateway: 10.115.55.254
gatewayNode: ""
natOutgoing: true
private: false
protocol: IPv4
provider: vswitchexternal.kube-system.ovn
vpc: custom-vpc
Create the vpc nat gateway config
kind: VpcNatGateway
apiVersion: kubeovn.io/v1
metadata:
annotations:
k8s.v1.cni.cncf.io/networks: default/vswitchinternal
name: gw1
spec:
vpc: custom-vpc
subnet: subnetinternal
lanIp: 172.20.10.254
externalSubnets:
- subnetexternal
Verify if a new vpcnatgw statefulset and a pod created
kubectl get statefulset -n kube-system vpc-nat-gw-gw1 -o yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
creationTimestamp: "2026-03-06T22:33:47Z"
generation: 1
labels:
app: vpc-nat-gw-gw1
ovn.kubernetes.io/vpc-nat-gw: "true"
name: vpc-nat-gw-gw1
namespace: kube-system
resourceVersion: "12139577"
uid: cb48e680-95e8-408d-be47-23499ad0ac5c
spec:
persistentVolumeClaimRetentionPolicy:
whenDeleted: Retain
whenScaled: Retain
podManagementPolicy: OrderedReady
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
app: vpc-nat-gw-gw1
ovn.kubernetes.io/vpc-nat-gw: "true"
serviceName: ""
template:
metadata:
annotations:
externalvswitch.kube-system.ovn.kubernetes.io/routes: '[{"dst":"0.0.0.0/0","gw":"10.115.55.254"}]'
internalvswitch.default.ovn.kubernetes.io/ip_address: 172.20.10.254
internalvswitch.default.ovn.kubernetes.io/logical_switch: internalsubnet
internalvswitch.default.ovn.kubernetes.io/routes: '[{"dst":"10.55.0.0/16","gw":"172.20.10.1"},{"dst":"10.115.48.0/21","gw":"172.20.10.1"}]'
internalvswitch.default.ovn.kubernetes.io/vpc_nat_gw: gw1
k8s.v1.cni.cncf.io/networks: default/internalvswitch, kube-system/externalvswitch
ovn.kubernetes.io/ip_address: 172.20.10.254
ovn.kubernetes.io/logical_switch: internalsubnet
ovn.kubernetes.io/vpc_nat_gw: gw1
labels:
app: vpc-nat-gw-gw1
ovn.kubernetes.io/vpc-nat-gw: "true"
spec:
affinity: {}
containers:
- command:
- sleep
- infinity
env:
- name: GATEWAY_V4
value: 10.115.55.254
- name: GATEWAY_V6
image: docker.io/kubeovn/vpc-nat-gateway:v1.15.0
imagePullPolicy: IfNotPresent
lifecycle:
postStart:
exec:
command:
- sh
- -c
- sysctl -w net.ipv4.ip_forward=1
name: vpc-nat-gw
resources: {}
securityContext:
allowPrivilegeEscalation: true
privileged: true
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
dnsPolicy: ClusterFirst
restartPolicy: Always
schedulerName: default-scheduler
securityContext: {}
terminationGracePeriodSeconds: 0
updateStrategy:
type: RollingUpdate
status:
availableReplicas: 1
collisionCount: 0
currentReplicas: 1
currentRevision: vpc-nat-gw-gw1-98ff96d76
observedGeneration: 1
readyReplicas: 1
replicas: 1
updateRevision: vpc-nat-gw-gw1-98ff96d76
updatedReplicas: 1
kubectl describe pod vpc-nat-gw-gw1-0 -n kube-system
Name: vpc-nat-gw-gw1-0
Namespace: kube-system
Priority: 0
Service Account: default
Node: hp-46/10.115.14.70
Start Time: Fri, 06 Mar 2026 22:33:47 +0000
Labels: app=vpc-nat-gw-gw1
apps.kubernetes.io/pod-index=0
controller-revision-hash=vpc-nat-gw-gw1-98ff96d76
ovn.kubernetes.io/vpc-nat-gw=true
statefulset.kubernetes.io/pod-name=vpc-nat-gw-gw1-0
Annotations: cni.projectcalico.org/containerID: 3cf564b6124aae048a097bd9777dd3ac583b293357cb819a85146515e2ba1e52
cni.projectcalico.org/podIP: 10.52.1.66/32
cni.projectcalico.org/podIPs: 10.52.1.66/32
externalvswitch.kube-system.ovn.kubernetes.io/allocated: true
externalvswitch.kube-system.ovn.kubernetes.io/cidr: 10.115.48.0/21
externalvswitch.kube-system.ovn.kubernetes.io/gateway: 10.115.55.254
externalvswitch.kube-system.ovn.kubernetes.io/ip_address: 10.115.48.1
externalvswitch.kube-system.ovn.kubernetes.io/logical_router: commonvpc
externalvswitch.kube-system.ovn.kubernetes.io/logical_switch: externalsubnet
externalvswitch.kube-system.ovn.kubernetes.io/mac_address: fe:01:4a:61:43:6e
externalvswitch.kube-system.ovn.kubernetes.io/pod_nic_type: veth-pair
externalvswitch.kube-system.ovn.kubernetes.io/routed: true
externalvswitch.kube-system.ovn.kubernetes.io/routes: [{"dst":"0.0.0.0/0","gw":"10.115.55.254"}]
internalvswitch.default.ovn.kubernetes.io/allocated: true
internalvswitch.default.ovn.kubernetes.io/cidr: 172.20.10.0/24
internalvswitch.default.ovn.kubernetes.io/gateway: 172.20.10.1
internalvswitch.default.ovn.kubernetes.io/ip_address: 172.20.10.254
internalvswitch.default.ovn.kubernetes.io/logical_router: commonvpc
internalvswitch.default.ovn.kubernetes.io/logical_switch: internalsubnet
internalvswitch.default.ovn.kubernetes.io/mac_address: d6:2d:c1:95:45:15
internalvswitch.default.ovn.kubernetes.io/pod_nic_type: veth-pair
internalvswitch.default.ovn.kubernetes.io/routed: true
internalvswitch.default.ovn.kubernetes.io/routes: [{"dst":"10.55.0.0/16","gw":"172.20.10.1"},{"dst":"10.115.48.0/21","gw":"172.20.10.1"}]
internalvswitch.default.ovn.kubernetes.io/vpc_cidrs: ["172.20.10.0/24"]
internalvswitch.default.ovn.kubernetes.io/vpc_nat_gw: gw1
k8s.v1.cni.cncf.io/network-status:
[{
"name": "k8s-pod-network",
"interface": "eth0",
"ips": [
"10.52.1.66"
],
"mac": "be:86:12:cc:e3:30",
"default": true,
"dns": {}
},{
"name": "default/internalvswitch",
"interface": "net1",
"ips": [
"172.20.10.254"
],
"mac": "d6:2d:c1:95:45:15",
"dns": {}
},{
"name": "kube-system/externalvswitch",
"interface": "net2",
"ips": [
"10.115.48.1"
],
"mac": "fe:01:4a:61:43:6e",
"dns": {},
"gateway": [
"10.115.55.254"
]
}]
k8s.v1.cni.cncf.io/networks: default/internalvswitch, kube-system/externalvswitch
ovn.kubernetes.io/ip_address: 172.20.10.254
ovn.kubernetes.io/logical_switch: internalsubnet
ovn.kubernetes.io/vpc_nat_gw: gw1
ovn.kubernetes.io/vpc_nat_gw_init: true
Status: Running
IP: 10.52.1.66
IPs:
IP: 10.52.1.66
Controlled By: StatefulSet/vpc-nat-gw-gw1
Containers:
vpc-nat-gw:
Container ID: containerd://efcab898c60ad94ee5d79a598f96d5b0becf65c2ae917d6f02246b227be40eca
Image: docker.io/kubeovn/vpc-nat-gateway:v1.15.0
Image ID: docker.io/kubeovn/vpc-nat-gateway@sha256:4c090dffaaf5c44593883bfa15a4524e860ac4d7c32555d98284aa8fa042ba6a
Port: <none>
Host Port: <none>
Command:
sleep
infinity
State: Running
Started: Fri, 06 Mar 2026 22:34:01 +0000
Ready: True
Restart Count: 0
Environment:
GATEWAY_V4: 10.115.55.254
GATEWAY_V6:
Mounts:
/var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-qgb7d (ro)
Conditions:
Type Status
PodReadyToStartContainers True
Initialized True
Ready True
ContainersReady True
PodScheduled True
Volumes:
kube-api-access-qgb7d:
Type: Projected (a volume that contains injected data from multiple sources)
TokenExpirationSeconds: 3607
ConfigMapName: kube-root-ca.crt
Optional: false
DownwardAPI: true
QoS Class: BestEffort
Node-Selectors: <none>
Tolerations: node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events: <none>
Check the vpc nat gw pod for interfaces (net1 attached to internal network, net2 attached to external network)
kubectl exec -it vpc-nat-gw-gw1-0 -n kube-system -- /bin/bash
vpc-nat-gw-gw1-0:/kube-ovn# ip addr show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host proto kernel_lo
valid_lft forever preferred_lft forever
2: eth0@if4949: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
link/ether be:86:12:cc:e3:30 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 10.52.1.66/32 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::bc86:12ff:fecc:e330/64 scope link proto kernel_ll
valid_lft forever preferred_lft forever
4950: net1@if4951: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default
link/ether d6:2d:c1:95:45:15 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 172.20.10.254/24 brd 172.20.10.255 scope global net1
valid_lft forever preferred_lft forever
inet6 fe80::d42d:c1ff:fe95:4515/64 scope link proto kernel_ll
valid_lft forever preferred_lft forever
4952: net2@if4953: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default
link/ether fe:01:4a:61:43:6e brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 10.115.48.1/21 brd 10.115.55.255 scope global net2
valid_lft forever preferred_lft forever
inet 10.115.55.200/21 scope global secondary net2
valid_lft forever preferred_lft forever
inet6 fe80::fc01:4aff:fe61:436e/64 scope link proto kernel_ll
valid_lft forever preferred_lft forever
vpc-nat-gw-gw1-0:/kube-ovn# ip route show
default via 10.115.55.254 dev net2
10.55.0.0/16 via 172.20.10.1 dev net1
10.115.48.0/21 dev net2 proto kernel scope link src 10.115.48.1
169.254.1.1 dev eth0 scope link
172.20.10.0/24 dev net1 proto kernel scope link src 172.20.10.254
Create a provider network with vlan id 2017 and physical interface and a vlan network attached to the provider network.
apiVersion: kubeovn.io/v1
kind: ProviderNetwork
metadata:
name: pn1
spec:
defaultInterface: eno50
apiVersion: kubeovn.io/v1
kind: Vlan
metadata:
name: vlan2017
spec:
id: 2017
provider: pn1
Edit subnet subnetexternal to use vlan as vlan2017 (this will attach this subnet to the provider network underlay)
apiVersion: kubeovn.io/v1
kind: Subnet
metadata:
name: subnetexternal
spec:
cidrBlock: 10.115.48.0/21
default: false
enableLb: true
excludeIps:
- 10.115.55.254
gateway: 10.115.55.254
gatewayNode: ""
natOutgoing: true
private: false
protocol: IPv4
provider: vswitchexternal.kube-system.ovn
vlan: vlan2017
vpc: custom-vpc
Verify provider network bridge (br-pn1) and external subnet attached on the ovs (patch-localnet.externalsubnet-to-br-int)
kubectl exec -it ovs-ovn-q92zk -n kube-system -- /bin/bash
Defaulted container "openvswitch" out of: openvswitch, hostpath-init (init)
nobody@hp-65:/kube-ovn$ ovs-vsctl show
54ef5649-9fe6-4944-865b-30a591c95121
Bridge br-pn1
Port br-pn1
Interface br-pn1
type: internal
Port patch-localnet.externalsubnet-to-br-int
Interface patch-localnet.externalsubnet-to-br-int
type: patch
options: {peer=patch-br-int-to-localnet.externalsubnet}
Port eno50
trunks: [0, 2017]
Interface eno50
Bridge br-int
fail_mode: secure
datapath_type: system
Port br-int
Interface br-int
type: internal
Port "6159403e_net1_h"
Interface "6159403e_net1_h"
Port mirror0
Interface mirror0
type: internal
Port ovn0
Interface ovn0
type: internal
Port patch-br-int-to-localnet.externalsubnet
Interface patch-br-int-to-localnet.externalsubnet
type: patch
options: {peer=patch-localnet.externalsubnet-to-br-int}
Port "7e8b0_37a8eec_h"
Interface "7e8b0_37a8eec_h"
Port "6159403e_net2_h"
Interface "6159403e_net2_h"
ovs_version: "3.5.3"
SNAT for external connectivity from Overlay VMs
Create EIP and SNAT resource
apiVersion: kubeovn.io/v1
kind: IptablesEIP
metadata:
name: my-eip
spec:
natGwDp: gw1 # Name of your VpcNatGateway
externalSubnet: subnetexternal
v4ip: 10.115.55.200 #random public ip from external subnet
apiVersion: kubeovn.io/v1
kind: IptablesSnatRule
metadata:
name: my-snat
spec:
eip: my-eip
internalCIDR: 172.20.10.0/24 #internal subnet CIDR
Verify EIP status
kubectl get eip
NAME IP MAC NAT NATGWDP READY
my-eip 10.115.55.200 52:1b:4f:1d:14:ce dnat,snat gw1 true
Verify SNAT filter iptable rule created inside the VPC NAT gateway pod
vpc-nat-gw-gw1-0:/kube-ovn# iptables-legacy-save -t nat
# Generated by iptables-save v1.8.11 on Sat Mar 7 00:28:34 2026
*nat
:PREROUTING ACCEPT [2949:373475]
:INPUT ACCEPT [107:31097]
:OUTPUT ACCEPT [0:0]
:POSTROUTING ACCEPT [1:60]
:DNAT_FILTER - [0:0]
:EXCLUSIVE_DNAT - [0:0]
:EXCLUSIVE_SNAT - [0:0]
:SHARED_DNAT - [0:0]
:SHARED_SNAT - [0:0]
:SNAT_FILTER - [0:0]
-A PREROUTING -j DNAT_FILTER
-A POSTROUTING -j SNAT_FILTER
-A SHARED_SNAT -s 172.20.10.0/24 -o net2 -j SNAT --to-source 10.115.55.200 --random-fully
-A SNAT_FILTER -j EXCLUSIVE_SNAT
-A SNAT_FILTER -j SHARED_SNAT
COMMIT
Create a VM and attach it to the vswitchinternal overlay network and add the following default route in the guest os.
(172.20.10.254 is the ip addresses on net1 interface on vpc nat gw pod)
ip route add default via 172.20.10.254 dev enp1s0

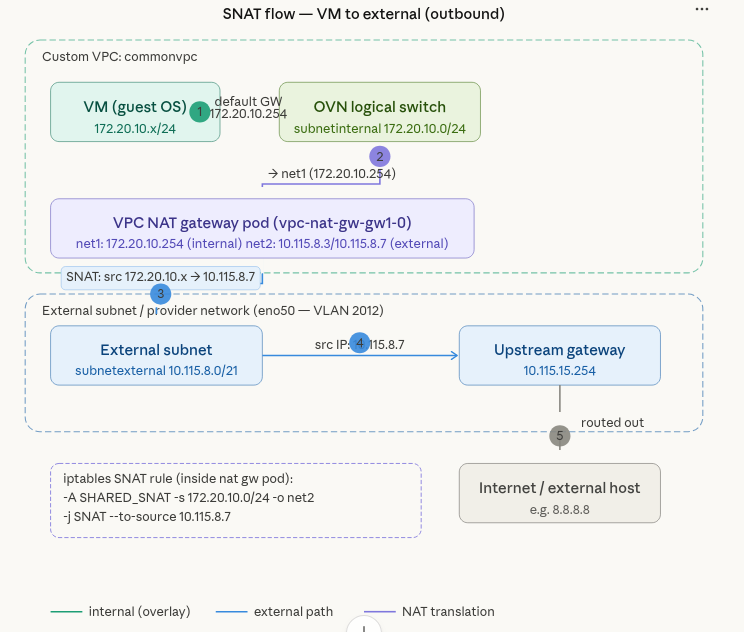

Ping from VM (inside guest os) to 8.8.8.8 must be successful The traffic from VM reaches net1 of vpc nat gw pod and with route installed egress out of net2 and hits the iptable rule for SNAT and translates 172.20.10.0/24 subnet ip to 10.115.55.200 for external connectivity.

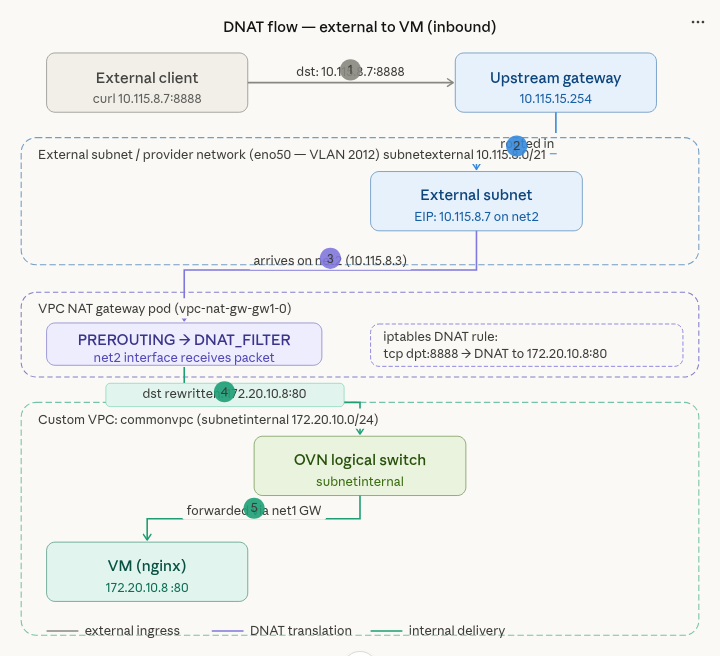

DNAT for inbound access (external to overlay VMs)
Use the DNAT resource and use same EIP as SNAT
kind: IptablesDnatRule
apiVersion: kubeovn.io/v1
metadata:
name: dnat01
spec:
eip: my-eip
externalPort: '8888'
internalIp: 172.20.10.2 #IP of the overlay VM
internalPort: '80'
protocol: tcp
Check the DNAT Filter inside the vpc NAT GW pod
vpc-nat-gw-gw1-0:/kube-ovn# iptables-legacy -t nat -L -n -v 2>/dev/null | grep -E "DNAT"
3051 392K DNAT_FILTER all -- * * 0.0.0.0/0 0.0.0.0/0
Chain DNAT_FILTER (1 references)
3051 392K EXCLUSIVE_DNAT all -- * * 0.0.0.0/0 0.0.0.0/0
3051 392K SHARED_DNAT all -- * * 0.0.0.0/0 0.0.0.0/0
Chain EXCLUSIVE_DNAT (1 references)
Chain SHARED_DNAT (1 references)
1 60 DNAT tcp -- * * 0.0.0.0/0 10.115.55.200 tcp dpt:8888 to:172.20.10.2:80
Create a VM attached to overlay network on subnetinternal and Install nginx on VM to check inbound access
sudo apt update
sudo apt install nginx -y
sudo systemctl status nginx
test nginx locally on the VM
curl http://127.0.0.1
Now curl -k http://10.115.55.200:8888 from external must be successful
