Virtual Private Cloud (VPC)

A virtual private cloud (VPC) is a logically isolated network that provides full control over IP addresses, subnets, route tables, firewalls, and gateways within a cloud infrastructure. VPCs allow the secure and scalable deployment of virtualized resources such as compute, storage, and container services.

The following table outlines the key components of a VPC:

Component	Description
VPC	Top-level network space with a user-defined IP CIDR range
subnet	Subdivision of the VPC IP space; can be public or private
route table	Defines traffic routing rules within and outside the VPC
internet gateway	Enables outbound internet access for public subnets
NAT gateway	Allows private subnets to access the internet (outbound only)
security group	Virtual firewall that controls inbound and outbound traffic per instance
VPC peering	Optional peering or hybrid connections between different VPCs or on-premises networks

Harvester + Kube-OVN Integration Architecture

The following diagram illustrates how VPCs, subnets, overlay networks, and virtual machines are logically connected in Harvester with Kube-OVN. This architecture includes public and private subnets, allowing separation of internet-facing traffic from internal resources.

                                 [ VPC: vpc-1 ]
                                        │
                  ┌─────────────────────┴─────────────────────┐
                  │                                           │
     [ Subnet: vswitch1-subnet ]                 [ Subnet: vswitch2-subnet ]
       CIDR: 172.20.10.0/24                          CIDR: 172.20.20.0/24
       Gateway: 172.20.10.1                          Gateway: 172.20.20.1
                  │                                           │
     [ Overlay Network: vswitch1 ]               [ Overlay Network: vswitch2 ]
                  │                                           │
         ┌────────┴────────┐                         ┌────────┴────────┐
         │                 │                         │                 │
[VM: vm1-vswitch1] [VM: vm2-vswitch1]                [VM: vm1-vswitch2]
IP: 172.20.10.X     IP: 172.20.10.Y                    IP: 172.20.20.Z

Multiple VPCs and subnets in Kube-OVN can map to overlay networks and virtual machines in Harvester. This architecture enables scalable, isolated L3 and L2 network structures across the cluster.

Component	Platform	Logical Responsibility
VPC	Kube-OVN	Top-level L3 domain, manages subnet groupings
Subnet	Kube-OVN	CIDR assignment, routing, gateway, firewall rules
Overlay network	Harvester	L2 virtual switch (OVS bridge), mapped to subnet
Virtual machine	Harvester	Runs compute workloads, connected to overlay

This architecture has the following key characteristics:

• Kube-OVN creates the VPC and its subnets.

  Each subnet includes a CIDR and gateway IP, and binds to an overlay network (as provider). Kube-OVN enforces a one-to-one mapping between the subnet and the overlay network to avoid ambiguous routing, traffic collisions, and isolation issues.

• Harvester defines the overlay networks (type: OverlayNetwork).

  Each overlay network is considered a provider in Kube-OVN. When you create a subnet on the Harvester UI, you can select these overlay networks in the Provider list on the Subnet:Create screen.

• Harvester provisions virtual machines that are connected to an overlay network.

  Each virtual machine uses the Kube-OVN IPAM to request an IP address after booting. The virtual machine receives its IP address, gateway, and routing information from the associated subnet.

• Kube-OVN handles all L3 logic (routing, NAT, VPC peering, and isolation).

  Harvester focuses purely on compute and network attachment. Network policy enforcement, private subnets, and NAT egress are managed by Kube-OVN.

This architecture has the following benefits:

• Clear separation of concerns: Harvester handles virtualization; Kube-OVN handles SDN
• Scalability: New VPCs, subnets, and peering don’t require changes in Harvester core
• Kubernetes-native networking: Kube-OVN integrates tightly with Kubernetes, supporting CRDs, policies, etc.
• Isolation and observability: Centralized control over IPs, ACLs, and routing through Kube-OVN

VPC and Subnet Configuration

VPC Settings

In Harvester, a VPC (Virtual Private Cloud) is a logical network container that helps manage and isolate subnets and traffic. It defines routing, NAT, and network segmentation.

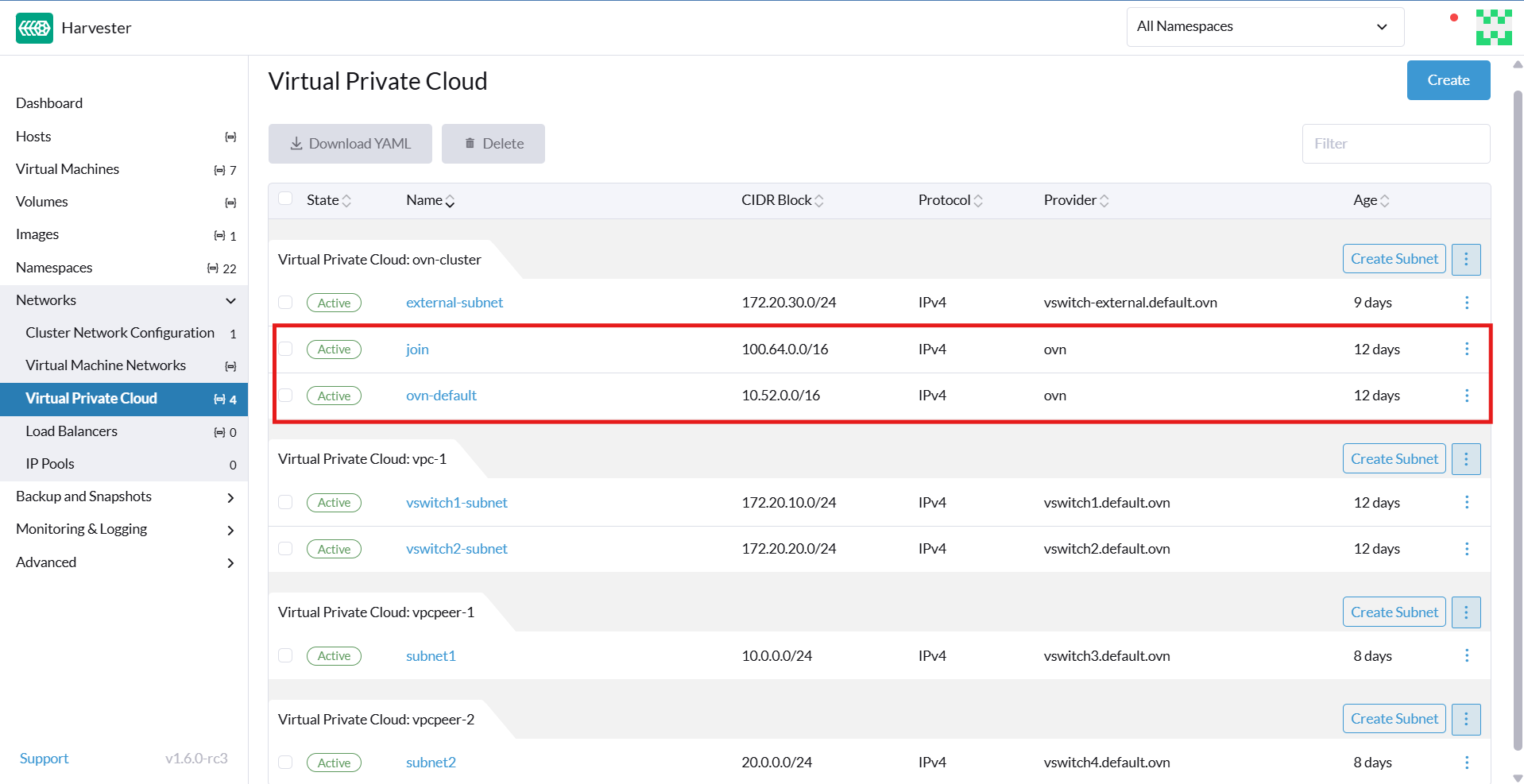

Harvester provides a default VPC named ovn-cluster, and two associated subnets named ovn-default and join for internal Kube-OVN operations. You can create additional VPCs by clicking Create on the Virtual Private Cloud screen.

When creating custom VPCs, you must configure settings related to the routes defined for directing traffic and connections that enable communication between the local and remote VPCs. The following table outlines the settings on the Virtual Private Cloud details screen:

Section	Setting	Description
General information	Name	Name of the VPC
General information	Description	Description of the VPC
Static Routes tab	CIDR	Destination IP address range for the route (for example, 192.168.1.0/24)
Static Routes tab	Next Hop IP	IP address to which traffic for the CIDR should be forwarded (for example, the gateway or router IP address)
VPC Peerings tab	Local Connect IP	IP address on the local VPC to be used for the peering connection.
VPC Peerings tab	Remote VPC	Target remote VPC that is peered with the local VPC.

Subnet Settings

Each subnet defines a CIDR block and gateway, and is mapped to a Harvester overlay network (virtual switch). It also includes controls for NAT and access rules.

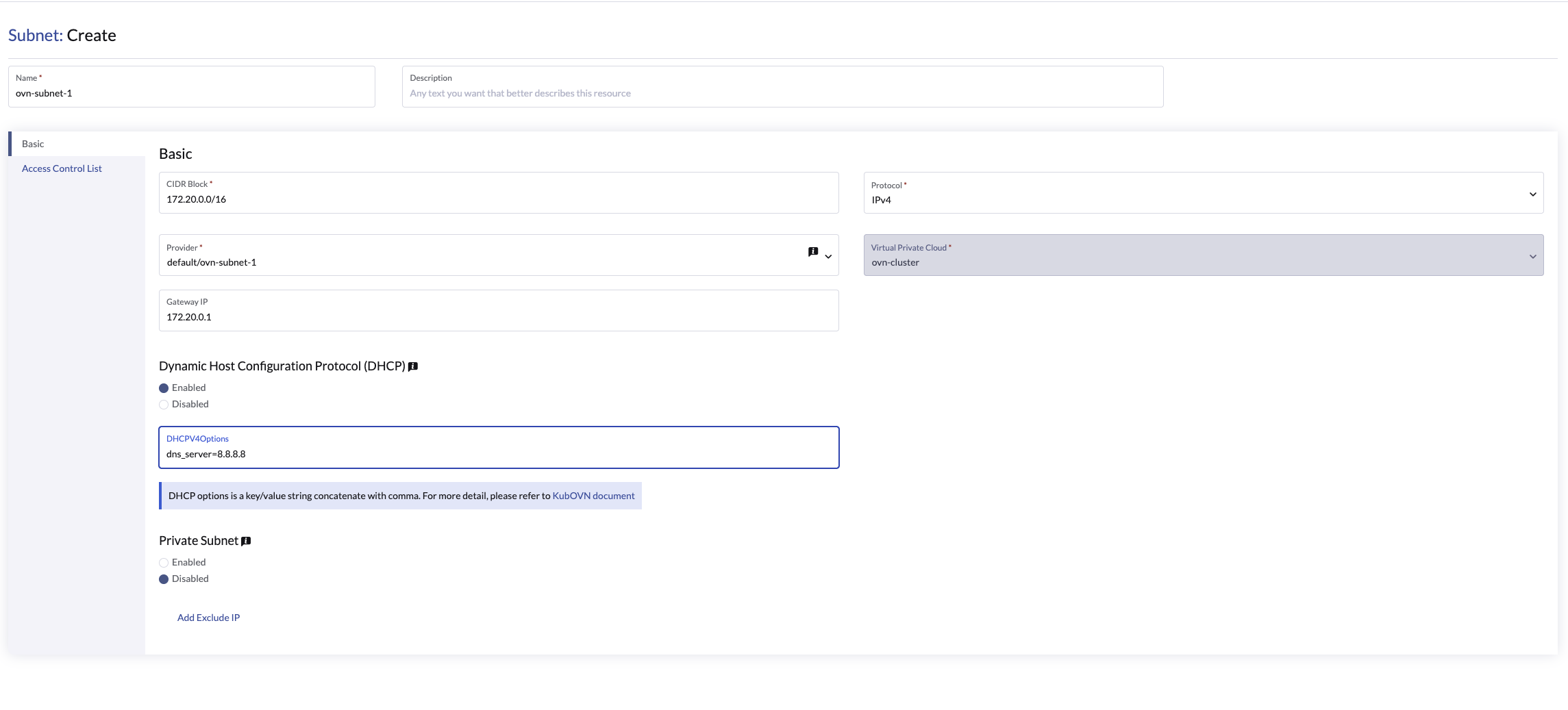

When creating subnets, you must configure settings that are relevant to your use case. In most cases, you can get started by just configuring the CIDR Block, Gateway, and Provider. The following table outlines the settings on the Subnet details screen:

Section	Setting	Description
General information	Name	Name of the subnet
General information	Description	Description of the subnet
Basic	CIDR Block	IP address range assigned to the subnet (for example, 172.20.10.0/24)
Basic tab	Protocol	The network protocol version used for this subnet (IPv4/IPv6)
Basic tab	Provider	Overlay network (virtual switch) to which the subnet is bound
Basic tab	Virtual Private Cloud	The virtual private cloud that the subnet belongs to
Basic tab	Gateway	IP address that acts as the default gateway for virtual machines in the subnet
Basic tab	Private Subnet	Setting that restricts access to the subnet and ensures network isolation
Basic tab	Allow Subnets	CIDRs that are allowed to access the subnet when Private Subnet is enabled
Basic tab	Exclude IPs	A list of IP addresses that should not be automatically assigned

Each created subnet comes with the natOutgoing as false by default and need to be changed manually. You need to edit its YAML configuration to set natOutgoing: true when required.

In a custom VPC, the subnets created are basically not able to communicate directly with the subnets under the default VPC ovn-cluster. Unless a VPC peering connection is properly set up between the two VPCs, enabling secure and controlled network communication between them, cross-VPC subnet communication is not possible.

In other words, without VPC peering configured, subnet traffic in different VPCs is isolated and cannot exchange data directly.

Sample VPC Configuration and Verification

1. Creat Virtual Machine Networks

   • Name: vswitch1, vswitch2
   • Type: OverlayNetwork

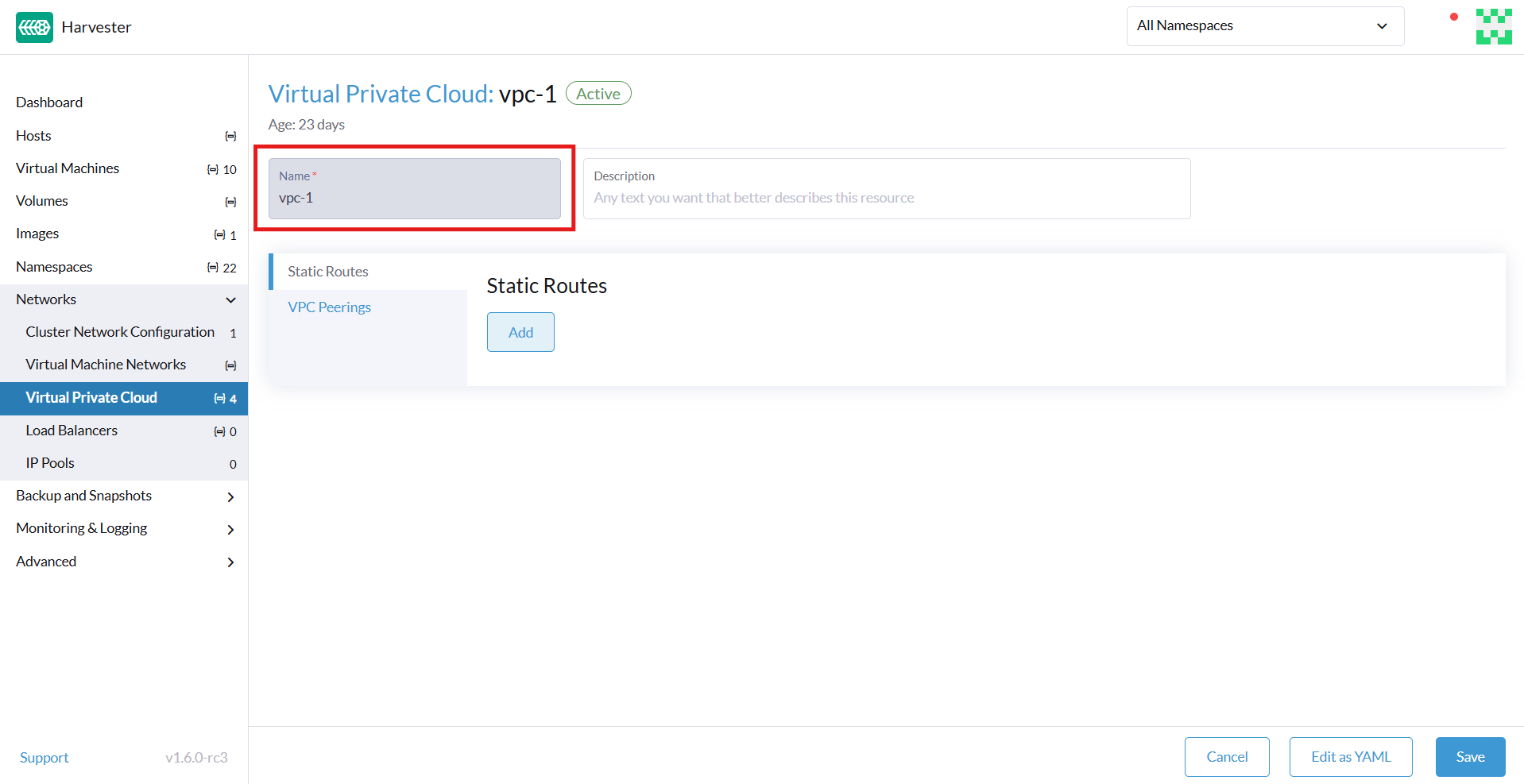

2. Creat VPC

   • Name: vpc-1

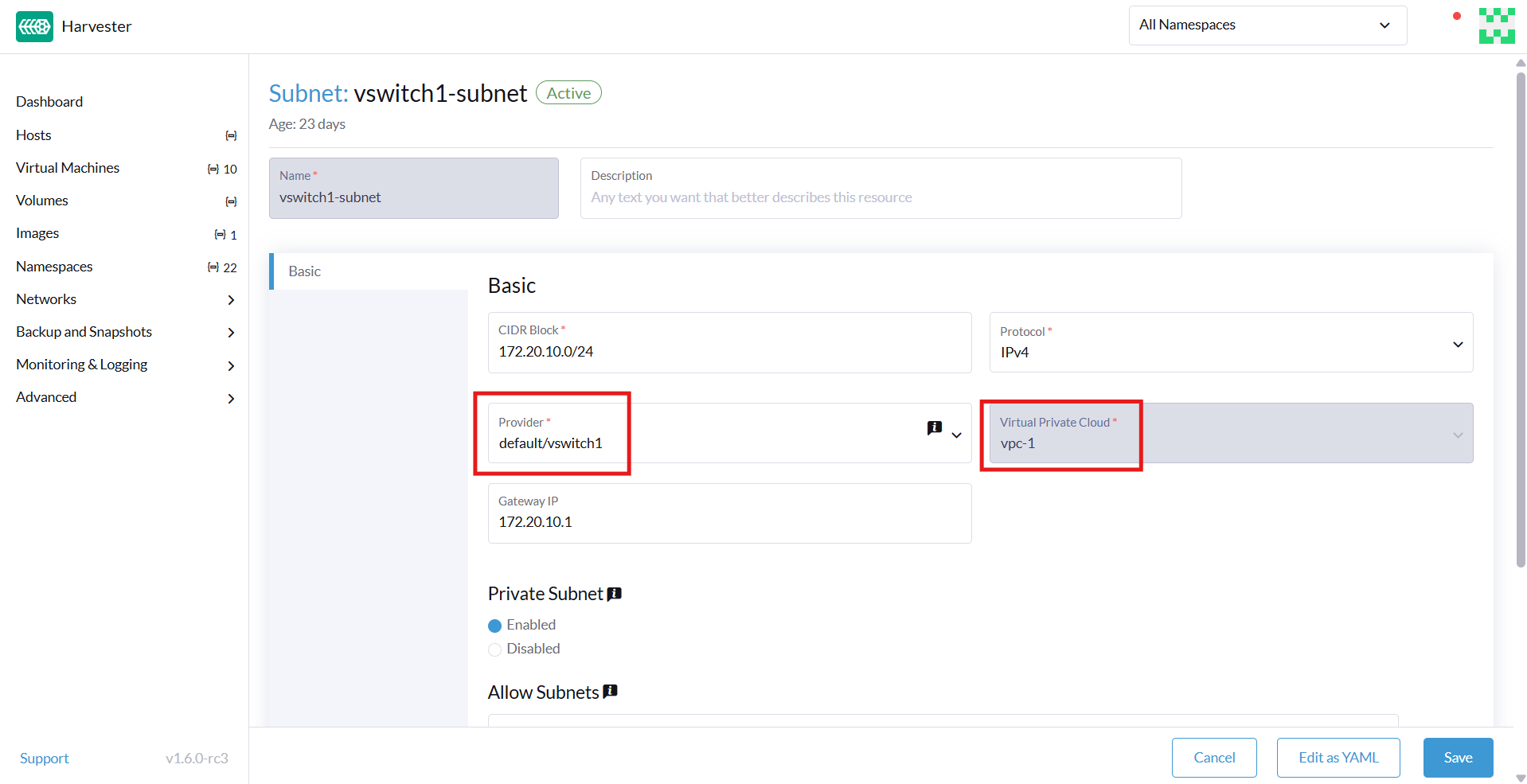

3. Create two subnets with the following settings in vpc-1:

   Name	CIDR	Provider	Gateway IP
   vswitch1-subnet	172.20.10.0/24	default/vswitch1	172.20.10.1
   vswitch2-subnet	172.20.20.0/24	default/vswitch2	172.20.20.1

4. Create three virtual machines (vm1-vswitch1, vm2-vswitch1, and vm1-vswitch2) with the following settings:

   • Basics tab
     • CPU: 1
     • Memory: 2
   • Volumes tab
     • Image Volume: A cloud image (for example, noble-server-cloudimg-amd64)
   • Networks tab
     • Network: default/vswitch1
   • Advanced Options tab

     users:
     `  `- name: ubuntu
     `    `groups: [ sudo ]
     `    `shell: /bin/bash
     `    `sudo: ALL=(ALL) NOPASSWD:ALL
     `    `lock\_passwd: false
     :::note

   Once the virtual machines start running, the node displays the NTP server 0.suse.pool.ntp.org and the IP address.

   :::

5. Open the serial consoles of vm1-vswitch1 (172.20.10.6) and vm1-vswitch2 (172.20.20.3), and then add a default route on each (if none exists) using the following commands:

   • vm1-vswitch1:

     #sudo ip route add default via 172.20.10.1 dev enp1s0
   • vm1-vswitch2

     #sudo ip route add default via 172.20.20.1 dev enp1s0

   If a virtual machine wants to send traffic to an unknown network (not in the local subnet), the traffic must be forwarded to the specified gateway IP configured for the connected subnet using the specified network interface. In this example, vm1-vswitch1 must forward traffic via 172.20.10.1, while vm1-vswitch2 must forward traffic via 172.20.20.1. Both virtual machines use the network interface enp1s0 and vm1-vswitch2 need to forward traffic via 172.20.20.1.

6. Verify connectivity using the ping command.

   • vm1-vswitch1 and vm1-vswitch2 connects to the same subnet should be reachable to each other.
   • Use vm1-vswitch1 (172.20.10.6) to ping vm1-vswitch2 (172.20.20.3).
   • Use vm1-vswitch2 (172.20.20.3) to ping vm1-vswitch1 (172.20.10.6).

   If no default route exists on the VM before running the ping command, the console displays the message ping: connect: Network is unreachable..

Private Subnet Setting

When the Private Subnet setting is enabled on a subnet, it cannot communicate with other subnets in the same VPC by default. Cross-subnet traffic is allowed only if you add the other subnets' CIDR blocks to the private subnet’s Allowed Subnets list.

The following are the benefits of enabling the Private Subnet setting:

• Fine-grained network segmentation (micro-segmentation)
• Stronger network isolation within the VPC and reduced potential attack surface
• Prevention of unauthorized access to sensitive or critical resources inside the VPC
• Controlled, selective cross-subnet communication via the Allowed Subnets list

Sample Private Subnet Verification

1. Go to Networks > Virtual Private Cloud.

2. Locate vswitch1-subnet, and then select ⋮ > Edit Config.

3. Enable the Private Subnet setting.

4. Open the serial console of vm1-vswitch1 (172.20.10.6), and then ping vm1-vswitch2 (172.20.20.3).

   The ping attempt fails because the virtual machines are in different subnets.

5. Return to the Virtual Private Cloud screen, locate vswitch1-subnet, and then select ⋮ > Edit Config.

6. Add 172.20.20.0/24 to the Allow Subnets field.

7. Open the serial console of vm1-vswitch1 (172.20.10.6), and then ping vm1-vswitch2 (172.20.20.3).

   The ping attempt is successful.

natOutgoing Setting

The natOutgoing setting enables network address translation (NAT) for traffic leaving the subnet and going to destinations outside the VPC. This setting is disabled by default. To enable it, you must edit the subnet's YAML configuration and set the value to natOutgoing: true.

Sample natOutgoing Verification

1. Create a virtual machine network with the following settings:

   • Name: vswitch-external
   • Type: OverlayNetwork

2. In the ovn-cluster VPC, create a subnet with the following settings:

   • Name: external-subnet
   • CIDR Block: 172.20.30.0/24
   • Provider: default/vswitch-external
   • Gateway IP: 172.20.30.1

3. Create a virtual machine with the following settings:

   • Name: vm-external

   • Basics tab

     • CPU: 1
     • Memory: 2

   • Volumes tab

     • Image Volume: A cloud image (for example, noble-server-cloudimg-amd64)

   • Networks tab

     • Network: default/vswitch-external

   • Advanced Options tab

     users:
     `  `- name: ubuntu
     `    `groups: [ sudo ]
     `    `shell: /bin/bash
     `    `sudo: ALL=(ALL) NOPASSWD:ALL
     `    `lock\_passwd: false

4. Open the serial console of vm-external (172.20.30.2), and then ping 8.8.8.8.

   The console displays the message ping: connect: Network is unreachable..

5. Add a default route using the following command:

   #sudo ip route add default via 172.20.30.1 dev enp1s0

   Again, the ping attempt fails.

6. Go to the Virtual Private Cloud screen.

7. Locate external-subnet, and then select ⋮ > Edit Config.

8. Click Edit as YAML.

9. Locate the natOutgoing field, and then change the value to true.

10. Click Save.

11. Open the serial console of vm-external (172.20.30.2), and then ping 8.8.8.8.

    The ping attempt is successful.

What is VPC Peering?

VPC Peering is a networking connection that allows two Virtual Private Clouds (VPCs) to communicate with each other privately, as if they were on the same network.

By default, each VPC is an isolated network environment. Virtual machines (VMs) or services in different VPCs cannot communicate with each other.

When you configure VPC Peering, a private route is established between the two VPCs, allowing instances to communicate using their private IP addresses.

This communication happens without using public IPs or VPNs, ensuring both security and efficiency.

Within the Harvester network architecture, Multi-VPC support is designed to offer flexible and isolated networking environments.

Here's how it works:

1. Each VPC is a separate network namespace:

   • By default, VMs in different VPCs cannot reach each other.

   • Each VPC has its own CIDR block, routing table, and isolation boundary.

2. Communication via VPC Peering:

   • To enable communication between VMs across different VPCs, you need to configure a VPC Peering connection.

   • Once Peering is established, routing rules are automatically updated to allow private IP communication between the two VPCs.

   • Without Peering, even if VMs are hosted within the same Harvester cluster, they remain isolated.

3. Use cases:

   • Different departments or teams using separate VPCs.

   • Isolated environments (e.g., dev/test vs. production) that occasionally need controlled access.

   • Multi-tenant setups that require strong network isolation with optional connectivity.

   • This structure ensures clear routing, secure segmentation, and flexible multi-subnet design.

The diagram illustrates how multiple VPCs and subnets in Kube-OVN map to Harvester’s overlay networks and virtual machines, enabling scalable, isolated L3 and L2 network structures across the cluster.

                                          ┌───────────────────────────────────────────┐
                                          │                 Kube-OVN                  │
                                          │          (SDN Controller / IPAM)          │
                                          └───────────────────────────────────────────┘
                                                                │
         ┌──────────────────────────────────────────────────────┴──────────────────────────────────────────────────────────┐
         │                                                      │                                                          │
 ┌──────────────┐                                       ┌──────────────┐                                           ┌──────────────┐
 │  VPC: vpc-1  │                                       │VPC: vpcpeer-1│     ◀────────── peering ──────────▶      │VPC: vpcpeer-2│
 └──────────────┘                                       └──────────────┘                                           └──────────────┘
        │                                                       │                                                         │
        ▼                                                       ▼                                                         ▼
┌──────────────────────────────                  ┌──────────────────────────────┐                    ┌──────────────────────────────┐
│ Subnet: vswitch1-subnet      │                 │ Subnet: vswitch3-subnet      │                    │ Subnet: vswitch4-subnet      │
│ CIDR: 172.20.10.0/24         │                 │ CIDR: 10.0.0.0/24            │                    │ CIDR: 20.0.0.0/24            │
│ Gateway: 172.20.10.1         │                 │ Gateway: 10.0.0.1            │                    │ Gateway: 20.0.0.1            │
└──────────────────────────────┘                 └──────────────────────────────┘                    └──────────────────────────────┘
            │  (1:1 mapping - Provider binding)                 │                                                    │
            ▼                                                   ▼                                                    ▼
┌──────────────────────────────┐                 ┌──────────────────────────────┐                    ┌──────────────────────────────┐
│ Harvester Overlay: vswitch1  │                 │ Harvester Overlay: vswitch3  │                    │ Harvester Overlay: vswitch4  │
│ Type: OverlayNetwork         │                 │ Type: OverlayNetwork         │                    │ Type: OverlayNetwork         │
└──────────────────────────────┘                 └──────────────────────────────┘                    └──────────────────────────────┘
            │                                                   │                                                    │
            ▼                                                   ▼                                                    ▼
┌──────────────────────┐                            ┌──────────────────────┐                              ┌──────────────────────┐
│   VM: vm1-vswitch1   │                            │   VM: vm1-vswitch3   │                              │   VM: vm1-vswitch4   │
│   IP: 172.20.10.5    │  ◀ ──────── X ──────── ▶  │   IP: 10.0.0.2       │     ◀── Connected via ──▶   │   IP: 20.0.0.2       │
└──────────────────────┘                            └──────────────────────┘       vswitch(Overley)       └──────────────────────┘
            ▲
            │
  VM launched and managed by Harvester

Connected via vswitch1 (Overlay)

VPC peering

• Enable Private Communication Between VPCs\ VPC Peering allows virtual machines in different VPCs to communicate with each other using private IP addresses, as if they were on the same internal network.
• Maintain Network Isolation with Controlled Access\ Even though the VPCs can communicate, they are still logically and administratively isolated, which is useful for organizing workloads by team, function, or environment (e.g., dev, prod).
• Improve Performance and Reduce Costs\ Since traffic stays within the internal cloud network, it's faster, more secure, and typically cheaper than going over public internet or VPNs.
• Enhanced Security\ Traffic between VPCs via peering doesn't traverse the public internet, reducing exposure and risk. Access can also be tightly controlled with route tables and firewall rules.

Sample VPC Peering Verification

1. Create two virtual machine networks with the following settings:

   • Name: vswitch3 and vswitch4
   • Type: OverlayNetwork

2. Create two VPCs named vpcpeer-1 and vpcpeer-2.

   Harvester creates two isolated network spaces that are ready for subnet creation.

3. Create one subnet in each VPC with the following settings:

   VPC Name	Subnet Name	CIDR Block	Provider	Gateway IP
   vpcpeer-1	subnet1	10.0.0.0/24	default/vswitch3	10.0.0.1
   vpcpeer-2	subnet2	20.0.0.0/24	default/vswitch4	20.0.0.1

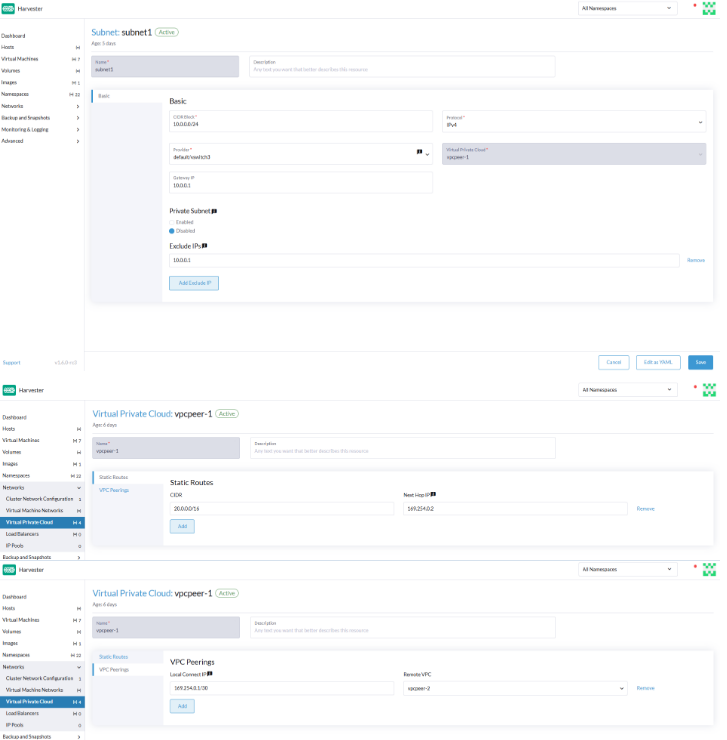

4. Edit the configuration of both VPCs.

   • vpcpeer-1 | Section | Setting | Value | | --- | --- | --- | | VPC Peering tab | Local Connect IP | 169.254.0.1/30 | | VPC Peering tab | Remote VPC | vpcpeer-2 | | Static Routes tab | CIDR | 20.0.0.0/16 | | Static Routes tab | Next Hop IP | 169.254.0.2 |

   • vpcpeer-2 | Section | Setting | Value | | --- | --- | --- | | VPC Peering tab | Local Connect IP | 169.254.0.2/30 | | VPC Peering tab | Remote VPC | vpcpeer-1 | | Static Routes tab | CIDR | 10.0.0.0/16 | | Static Routes tab | Next Hop IP | 169.254.0.1 |

5. Create virtual machines.

   An Unschedulable error typically indicates insufficient memory. Stop other virtual machines before attempting to create new ones.

6. Open the serial consoles of vm1-vpcpeer1 (10.0.0.2) and vm1-vpcpeer2 (20.0.0.2), and then add a default route on each (if none exists) using the following commands:

   • vm1-vpcpeer1:

     #sudo ip route add default via 10.0.0.1 dev enp1s0
   • vm1-vpcpeer2

     #sudo ip route add default via 20.0.0.1 dev enp1s0

7. Test cross-VPC communication using the ping command.

   • Use vm1-vpcpeer1 (10.0.0.2) to ping vm1-vpcpeer2 (20.0.0.2).
   • Use vm1-vpcpeer2 (20.0.0.2) to ping vm1-vpcpeer1 (10.0.0.2).
   important

   Communication between virtual machines in different VPCs relies on static routes that define how traffic is forwarded to the remote VPC. For these routes to work correctly, the static route destination CIDR must fall within the remote VPC’s main CIDR range.

VPC Peering Configuration Examples

• Example 1: Successful cross-VPC communication

  VPC Name	VPC CIDR	Subnet	Static Route
  vpcpeer-1	10.0.0.0/16	10.0.0.0/24	20.0.0.0/16 → 169.254.0.2
  vpcpeer-2	20.0.0.0/16	20.0.0.0/24	10.0.0.0/16 → 169.254.0.1

  Since both subnets fall within their respective VPC CIDRs, the routing works correctly and cross-VPC communication is successful.

• Example 2: Unsuccessful cross-VPC communication due to routing configuration issue

  VPC Name	VPC CIDR	Subnet	Static Route
  vpcpeer-1	10.0.0.0/16	10.1.0.0/24	20.0.0.0/16 → 169.254.0.2
  vpcpeer-2	20.0.0.0/16	20.1.0.0/24	10.0.0.0/16 → 169.254.0.1

  The target subnet IP addresses (for example, 10.1.0.2 and 20.1.0.2) are not covered by the routing configuration, causing cross-VPC communication to fail.

important

Ensure the following:

• The VPC's CIDR includes all subnets within the VPC.
• Static routes point to the remote VPC’s main CIDR block.

If a subnet uses a specific range that is not covered by the VPC CIDR, the associated static route cannot reach that subnet.

The configuration can refer to (https://kubeovn.github.io/docs/v1.13.x/en/vpc/vpc-peering/#prerequisites).

Guidelines for Local Connect IP and CIDR Configuration

Question	Answer
Is the Local Connect IP value a CIDR block?	Yes (for example, 169.254.0.1/30)
What is the recommended subnet size?	/30 (two usable IPs)
Can private addresses (RFC 1918) be used for peering links?	Not recommended
Why use 169.254.x.x?	Link-local, safe, not internet-routable, widely used

• Is the Local Connect IP value a CIDR block?

  Yes. You must specify a CIDR block (for example, 169.254.0.1/30) instead of a single IP address.

  The CIDR defines a point-to-point network where one IP address is used by the local VPC and the other is used by the remote VPC.

  Example: /30 block (169.254.0.0/30)

  IP Address	Purpose
  169.254.0.0	Network address
  169.254.0.1	Used by VPC A
  169.254.0.2	Used by VPC B
  169.254.0.3	Broadcast (optional)

• What is the recommended subnet size?

  /30 provides exactly two usable IP addresses, which fulfills the requirement of point-to-point VPC peering. Using larger blocks (for example, /28 and /29) is not necessary and can even be considered wasteful.

  CIDR	Usable IPs	Recommended?
  /30	2	Yes
  /29	6	No
  /28	14	No

• Why use 169.254.x.x/30 instead of private addresses?

  169.254.0.0/16 is not part of the RFC 1918 private address space (10.0.0.0/8, 172.16.0.0/12, and 192.168.0.0/16).

  RFC 3927 defines 169.254.0.0/16 as the link-local address space, which is intended for internal communication, auto IP configuration, and point-to-point routing.

  169.254.x.x/30 has the following advantages:

  • Not routable to the public internet
  • Secure for internal use
  • Commonly used by cloud platforms (including AWS and Alibaba Cloud) for internal networking purposes such as VPC peering and metadata access

Summary Table

Question	Answer
Is Local Connect IP a CIDR block?	Yes, e.g., 169.254.0.1/30
Recommended subnet size?	/30 (2 usable IPs)
Can I use private IPs (RFC1918)?	Not recommended for peering links
Why use 169.254.x.x?	Link-local, safe, not internet-routable, widely used

VPC Peering Limitations

Peering only works between custom VPCs. When static routes and peering addresses are correctly configured, the peering connection is established and the VPCs can communicate as expected.

caution

Attempts to establish a peering connection between the default VPC (ovn-cluster) and a custom VPC will fail.
